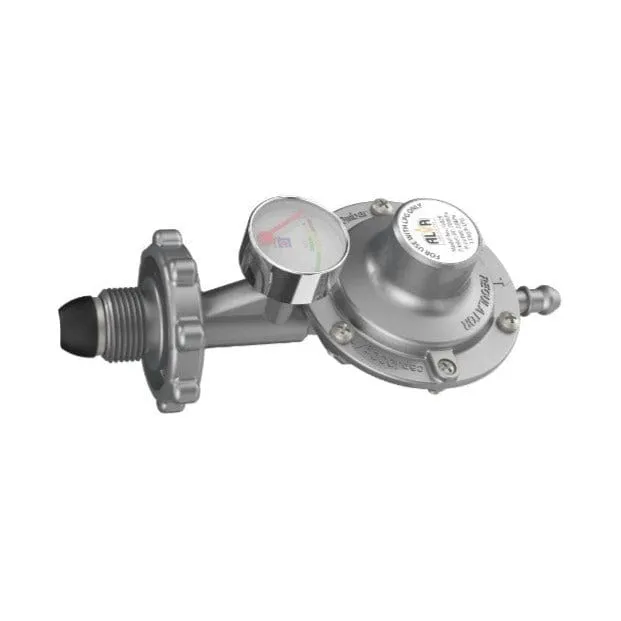

Bullnose Regulator With Pressure Gauge G0251-2

We make our Alva Accessories to make your Alva experience even better - with this regulator, you will never knowingly run out of gas again. Always safe, always better with Alva

• 5/8”BSP Left hand thread
• Low pressure regulator

• Type: Single stage regulator for LPG with built-in pressure gauge
• Cylinder Size (Recommended): 9kg - 48kg 5/8” BSP left hand thread
• Operating Pressure: 700kPa @ 2.8kPa output
• Gas Delivery Capacity: 1.0kg/h
• Item Dimensions: 17 (L) x 6.5 (W) x 6.5 cm (H)
• Item Weight: 260g
• Approved in accordance with: SANS 1237
• Packaged Weight: 290g
• Packaged Dimensions: 17.5 x 7 x 7cm HOW THE GAUGE OPERATES
• Gauge works automatically once the cylinder is opened. When the valve is closed, the gauge returns to the O position once all the excess gas in the hose is depleted.
• In cooler environments, the pressure inside the cylinder will lessen slightly, this will have a small effect on the reading of the gauge - This is normal.
• The gauge only works when the cylinder valve is open.
• The gauge doesn’t need to be reset, the gauge returns to 0 when the gas supply has been shut off.
• When the needle approaches the YELLOW bar, this indicates that the cylinder is running out of gas. Refilling the cylinder is advisable.
